OG202
Tooke Paint Inspection Gage

The Tooke Paint Inspection Gage is a precision tool for inspection and dry-film thickness measurement (in accordance with ASTM D4138) of single or multiple coats on any substrate, and for micro-scopic observation and measurement of substrate and film defects.

The Tooke Gage uses an illuminated 50-power microscope equipped with a “universal scope” with a measuring reticle that accommodates measurement in mils, microns, and millimeters. The gage mounts three tungsten carbide cutting tips for precise incision of the work surface. Standard cutting tips are 1X, 2X, and 10X. (An optional 5X tip is available.) Also, a gauge can be ordered with any three tips desired, or with a single precision-ground tip and two blanks.

Direct measurement of total dry-film coating thickness and thickness of individual coats of paint is a unique capability of the Tooke Paint Inspection Gage. Thus, in addition to routine use, it often serves as a “referee” instrument to calibrate indirect or non-destructive thickness measuring instruments.

(Note: Each universal microscope is validated before sale against a certified gage block traceable to the National Institute of Standards & Technology (NIST). An OEM calibration certificate is available for an additional fee.)

Special applications

The Tooke Gage has been used to assess sandblast cleaning work, to measure plating and paint thickness on ceramics, metal, wood, and concrete, and even to measure protective backing thickness on mirrors. It is virtually the only tool for measuring paint on plastics. The quality of the incision in the film discloses much about the characteristics of the brittleness and adhesion of the material.

Other uses include assessment of substrate conditions and coating adhesion, and observation of microscopic cracking, tendency for brittleness, cratering, or other microscopic film symptoms.


Construction

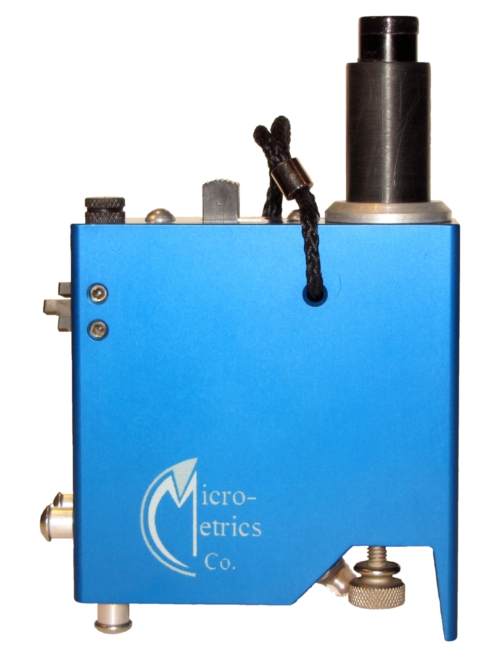

The anodized OG202 with the universal microscope with a reticle selected
to allow measurement in terms of mils, microns, and millimeters.

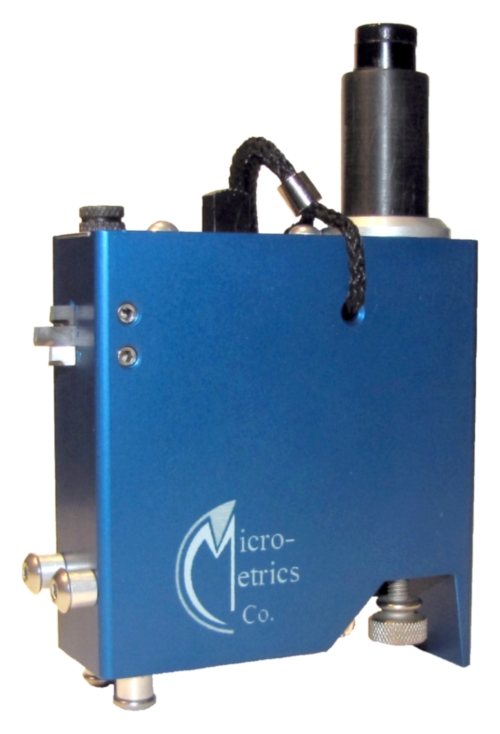

The aluminum gauge body contains an illuminated microscope and mounts three tungsten-carbide cutting tips (that incise the “V-groove” for measuring) on the narrow side. Two guide studs project from the body on the same side as the cutting tips. The tripod thus formed by the three legs (guide studs and cutting tip) provides precise alignment of the tool with the surface to be grooved. A lanyard with keeper looped through the body secures the instrument to the inspector’s wrist. The entire unit is designed for convenience and completeness in field inspection tasks.

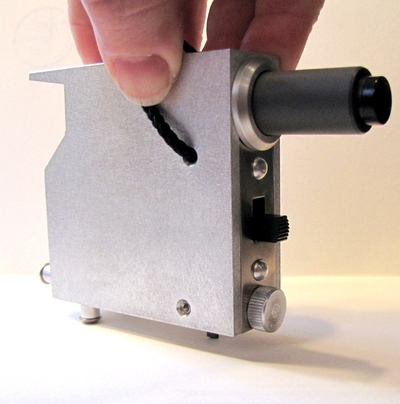

The old-style scope (not currently available)
More information about this gauge is posted elsewhere.

OG202

Operation

A special cutting tool (the cutting tip) that is integral to the gauge is used to incise a small precision V-groove through the paint film and into the substrate.

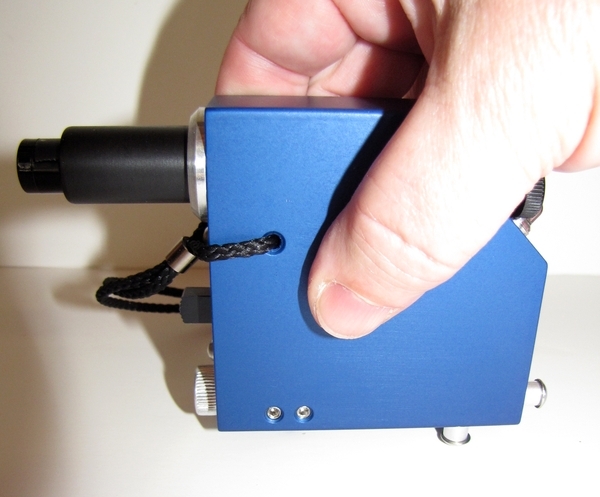

Incising the V-groove with the anodized OG202 Tooke Gage
Using an older version of the OG202 Tooke Gage with a universal scope

Tooke Gage cutting tips are precision-ground from tungsten-carbide blanks.

Cutting tips are precision-ground from tungsten-carbide blanks.

The gauge in standard configuration mounts 1X, 2X, and 10X cutting tips. (An optional 5X tip is available.) The gauge can be ordered in any desired configuration, such as with three tips of the same size. You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (spacers).

Cutting tip ratios: A to A′
TipFace angleRatio
1X45° 0'A : A′ = 1 : 1
2X26° 34'A : A′ = 1 : 0.5
5X11° 18'A : A′ = 1 : 0.2
10X5° 42'A : A′ = 1 : 0.1
The tip slot is marked for the standard
tip arrangement (in the anodized body).
close-up of tip slot
Close-up of a non-standard arrangement of tips;
a 1X tip extended for use and two blanks;
mounted in a (very) old-style gauge body.
tips mounted in a 202 gauge

Principle: using the universal microscope

The incised V-groove is observed vertically through an illuminated microscope bearing a measuring reticle (scale). The OG202 is equipped with a “universal scope” that has a reticle that accommodates measurement in mils, microns, and millimeters. (The universal scale is metric, so conversion is necessary for English units.)

The universal microscope reticle is marked in 0.05mm (50µm) per hashmark

Reading the universal microscope

Note that in the photo below, the zero-line of the reticle is not lined up for the actual measurement (nor does it need to be; any hashmark will do). The gray/silver-colored “line” is the metal substrate; the white “line” is the (inside of the) green coating, which is what is measured visually through the scope. (See below for a different annotated version.) The cutting tip “draws” the (specifically-angled, depending on the chosen tip face) incision, which allows for calculation of the coating thickness. In this photo, the black marker has not been used to make the edge (top) of the green coating more easily seen.

The view through the universal microscope

In the next photo, the “zero-line” of the reticle is not lined up with the edge of the primer coating (the white line to the left of the zero-line); it is approximately centered in the substrate (gray/silver line). (This was not intentional; lining up the camera moved the gauge slightly. Nor does it need to be lined up; any hashmark will do.) “Line A” is on the edge between the substrate and the beginning of the primer-coating: begin your measurement there. “Line B” marks the top of the primer coating/beginning of the top coating (light blue). “Line C” is the incision into the top coating, made easier to see by using the black marker provided with the Tooke Gage.

Annotated close-up through universal scope
Thus, in this photo and using a “universal” scope
(0.05mm hashmark space),
the thickness measured for each tip equals:

1 X tip

  • “white primer” = 2 reticle/hashmark spaces = 100 µm
  • “blue topcoat” = 5 reticle/hashmark spaces = 250 µm

2X tip

  • “white primer” = 2 reticle/hashmark spaces = 50 µm
  • “blue topcoat” = 5 reticle/hashmark spaces = 125 µm

10X tip

  • “white primer” = 2 reticle/hashmark spaces = 10 µm
  • “blue topcoat” = 5 reticle/hashmark spaces = 25 µm

(If you have an older gauge, with an English-only or metric-only reticle, please see this page for the measurements that would apply to this incision. These old-style scopes have a green-anodized barrel.)

Universal reticle specifications

Smallest hashmark
measures in:
1X tip2X tip10X tip
Mils*2(1.97)1(0.984)0.2(0.197)
Microns**50(50.0)25(25.0)5(5.0)
Millimeters0.05(0.050)0.025(0.025)0.005(0.005)
* 1.0 mil = 0.001" = one thousandth of an inch
**micron = micrometer (µm) = 1,000,000th of a meter

The geometry of the Tooke Gage incision

Measurements made using the Tooke Gage are a function of the cutting tip geometry (and not of the microscope). A detailed explanation of the geometry of the Tooke Gage called “Measuring: the Geometry of the Tooke Gage” is available.


Shipping specifications

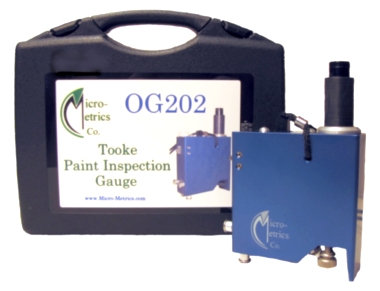

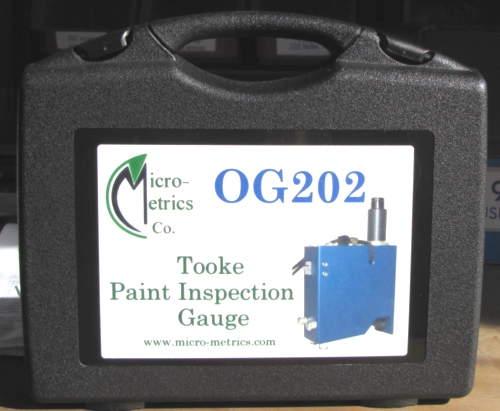

Shipping configuration OG 202

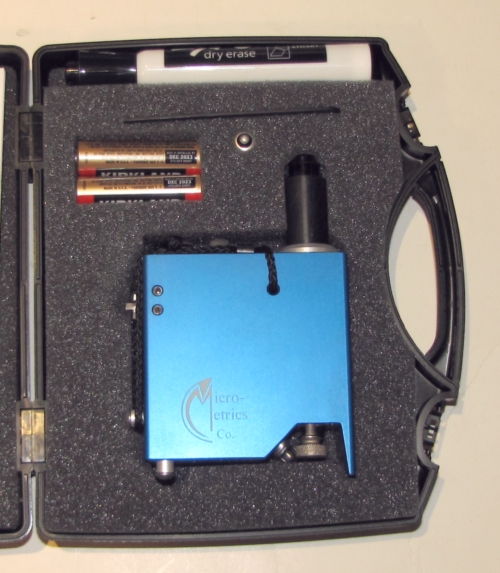

The machined aluminum Tooke Gage comes ready for use in a polycarbonate plastic carry case with two spare batteries, a spare LED bulb, a marking pen, a hex wrench, and a technical data sheet.

  • Standard cutting tip configuration is 1X, 2X, and 10X.
  • An optional 5X cutting tip is available.
  • Any configuration of tips may be requested (for example, three 10X tips; or a 1X, 2X, and 5X).
  • You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (spacers).

Specifications

Material:Machined anodized aluminum body
Overall dimensions:4.5" x 3.5" x1"
11.4cm x 8.9cm x 2.5cm
Microscope:50-power, 45-degree, illuminated
PowerTwo 15V AA drycells in the gauge,
plus two spares
LampLED 222 bulb plus a spare bulb
Cutting tips:Precision-ground tungsten-carbide:
  1X, 2X, and 10X (or as desired)
Shipping Weight:~2 pounds (0.9 kg)


Documentation

The Technical Data Sheet for the OG202 Tooke Gage is available to be printed on 8-1/2" by 11" and A4-sized paper.
and
A detailed explanation of the geometry of the Tooke Gage called “Measuring: the Geometry of the Tooke Gage” is available.
